PRODUCT DESCRIPTION
Description

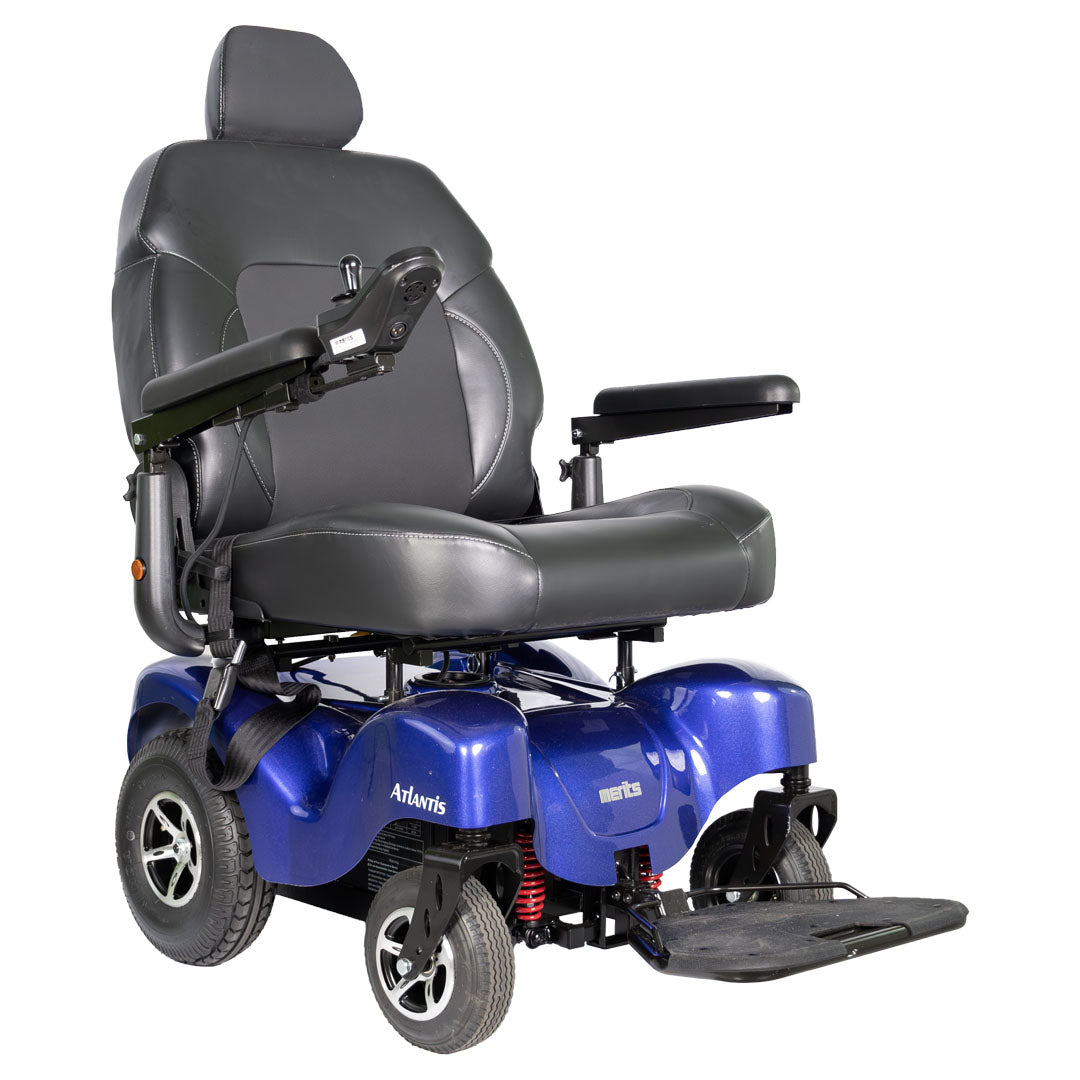

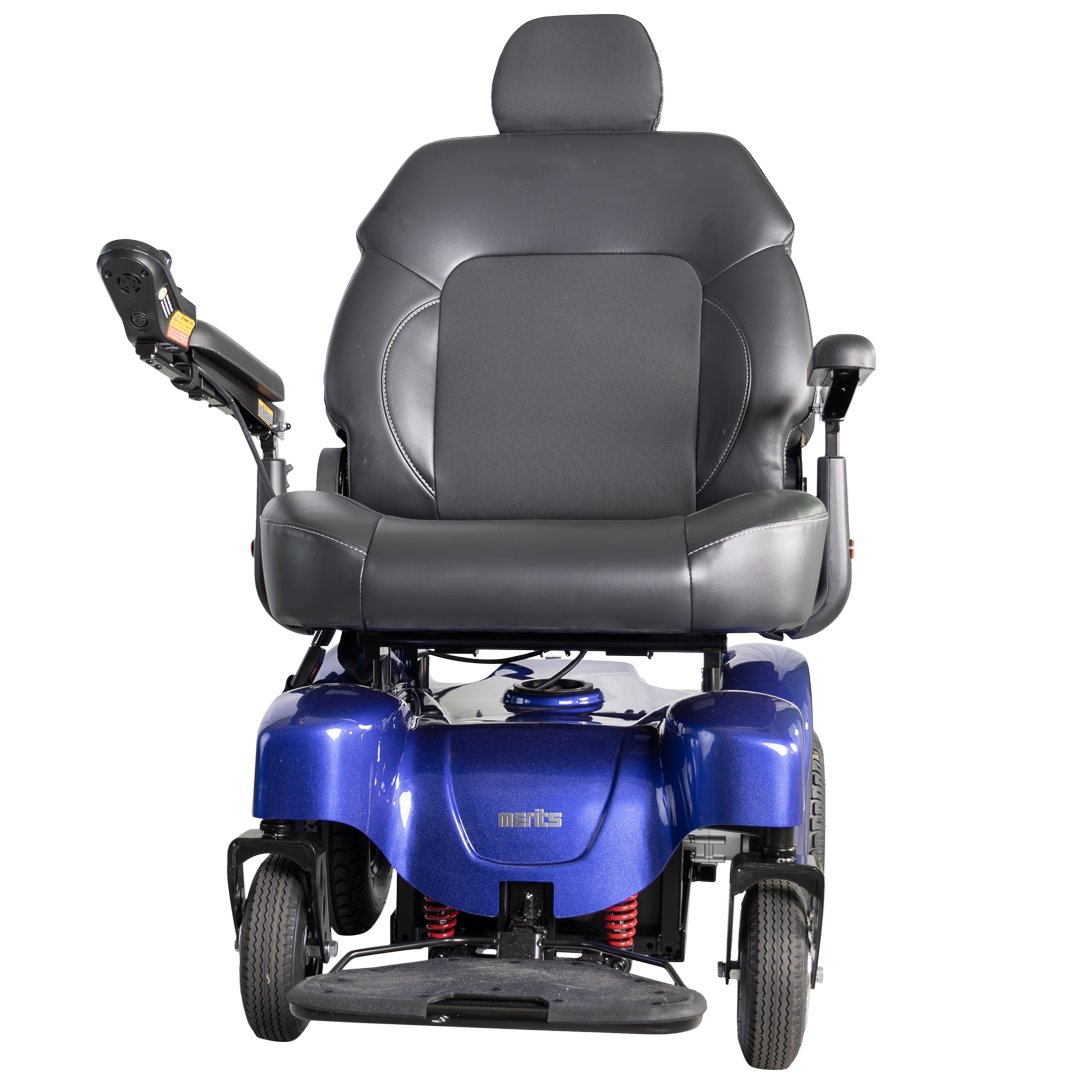

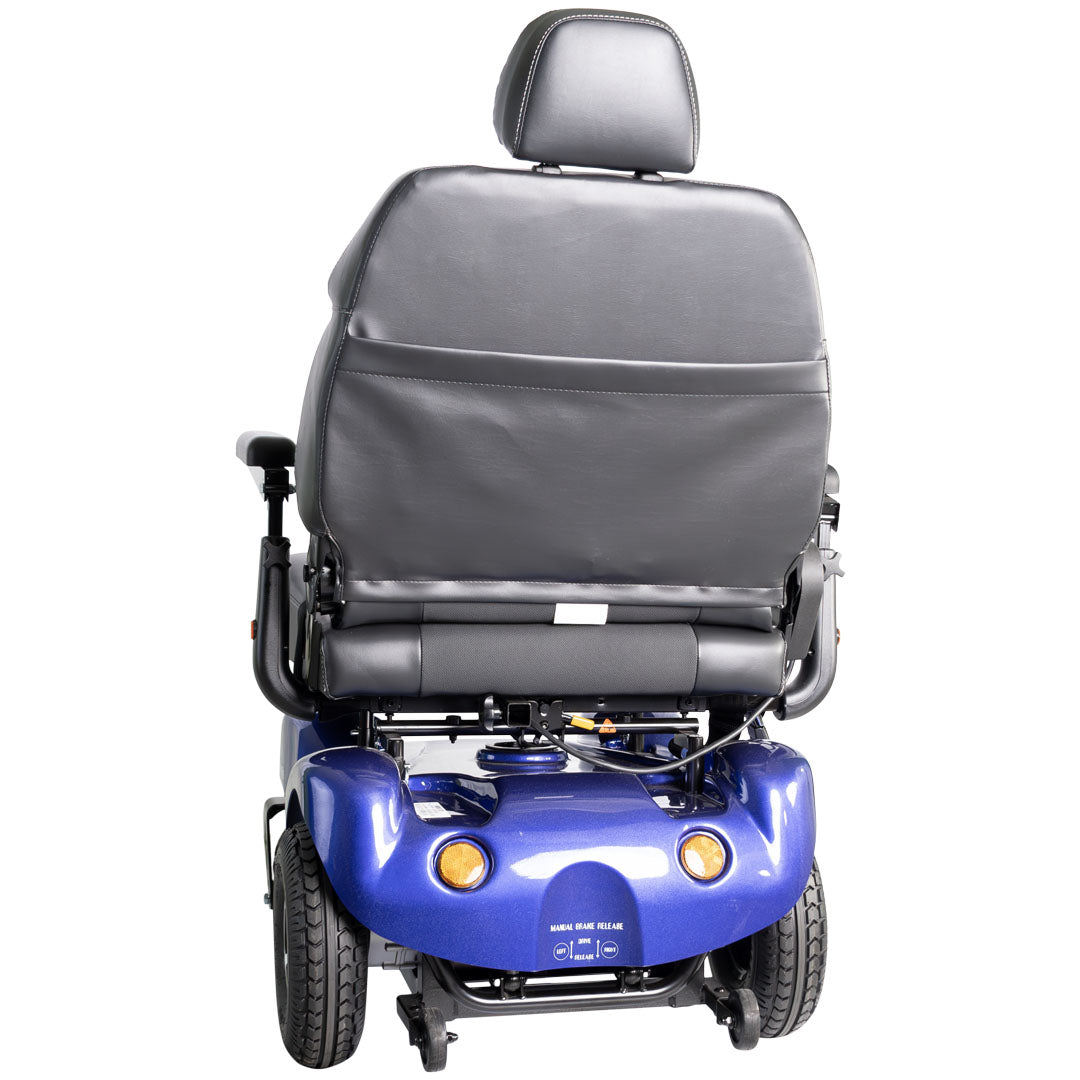

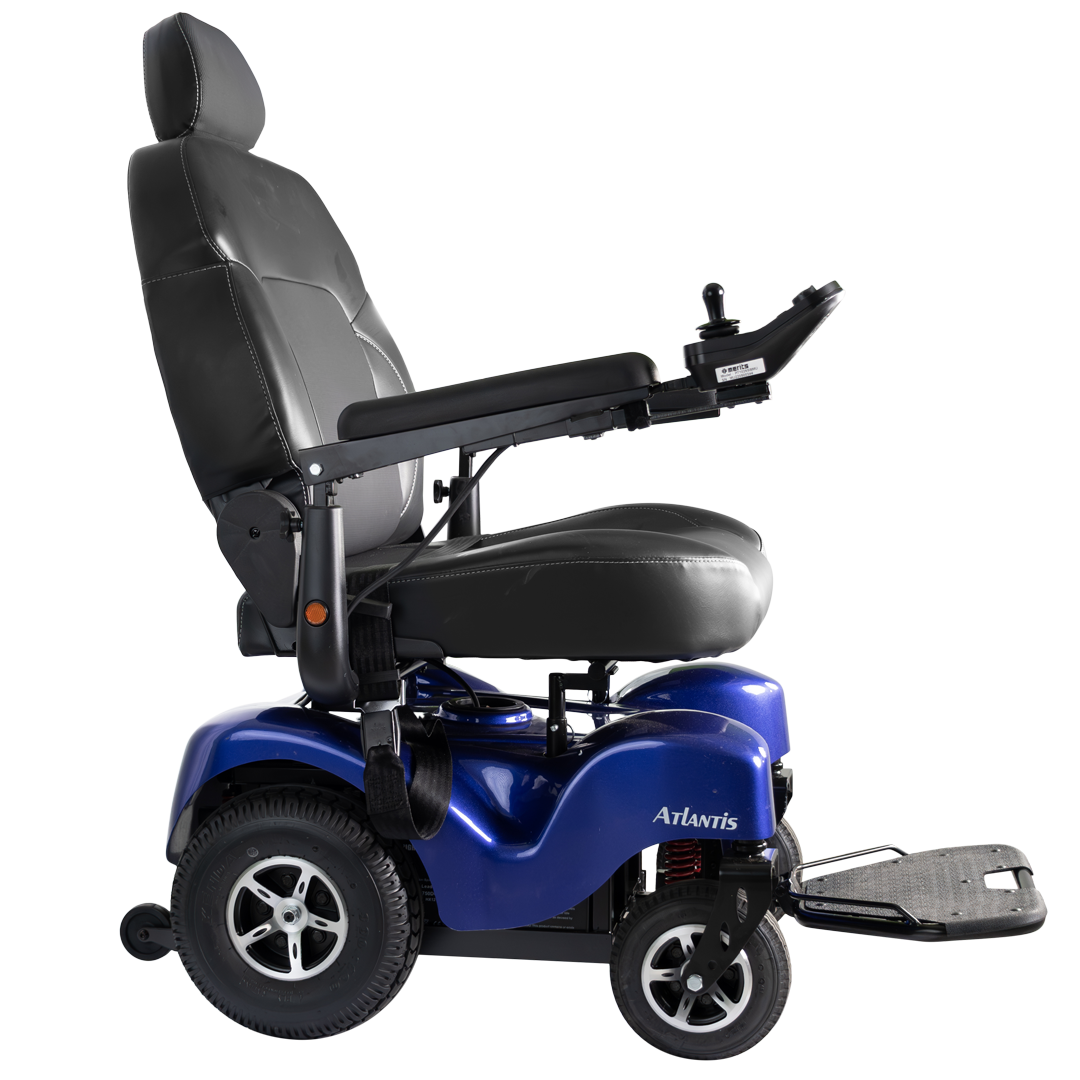

The Atlantis Heavy Duty Power Chair by Merits Health gives you the durability and comfort of a standard power chair with the added benefits of heavy-duty construction and design. With a 31.5-inch turning radius, 12-inch drive wheels, and a high-powered motor, the Atlantis Heavy Duty Power Chair will get you where you need to go with ease.
Features
- Weight Capacity 600 lbs.
- Heavy-duty power wheelchair with a unique and prominent design
- Four seat posts provide a more stable and durable structure for the frame
- Available with a pan or captain seat in 24 or 26-inch width
- Extra-wide seat and extra-high back provide great comfort for bariatric users
- Super high power in-line motors help riders negotiate 10° uphill ramps easily
Options
- Swing-away joystick
- USB charger
- Elevating leg rests
- Oxygen tank holder
- Cane/Crutch holder
- Walker holder
- Foldable rear basket
- Canopy
- Height adjustable arms
- Weather cover
Specifications
| Product # | P710 |
| Weight Capacity | 600 lbs |
| Drivetrain | RWD |
| Seat Type | Captain or Pan |
| Seat Width | 24" |
| Seat Depth | 22” |
| Backrest Height | 24" |
| Seat-to-Floor Height | 23" - 24" |
| Elevating Seat | n/a |
| Overall Length | 44" |
| Overall Width | 27" |
| Overall Height | 50" |
| Turning Radius | 31.5" |
| Ground Clearance | 3" |
| Total Weight | 304 lbs |
| Wt of Heaviest Pc | 167 lbs |
| Max Speed | 5 mph |
| Per Charge Range | up to 32 miles |
| Motor | DC 24V, 300W |
| Controller | P&G VR2 60A |
| Battery Size (2) | 12V/Group 24 (75AH) |
| Charger | 6A off-board |
| Gradient | 10 ° |
| Front Wheels | 9" pneumatic |
| Drive Wheels | 12" pneumatic |
| Rear Wheels | 3" anti-tippers |
| Group | Group: 2 Very Heavy |
| HCPCS Code | K0826/K0827 |
| Standard Colors | Red or Blue |
Warranty
MERITS HEALTH PRODUCTS, INC. WARRANTY POLICY
Merits Health Products, Inc. will repair or replace the following item(s) that have a manufactured
defect. Credit will be given following inspection by an authorized representative of Merits Health
Products, Inc. into the material or workmanship.
Part(s) purchased outside of warranty have 30 days to report manufactured defect.
5-Year Warranty from the original date of consumer purchase:
- Frame
18-Month Warranty from the original date of consumer purchase:
- Joystick
- Charger
- Gearbox
- Transaxle
- Electrical Harness
- Motor Brake Assembly
13-Month Warranty from the original date of consumer purchase:
- Seat Post
- Caster Forks
- Power Seat Actuator
- Metal Seating Frame
- Caster Beam
- Anti Tipper Forks
- Armrest Bracket (metal part only)
- 31ah or above batteries
6-Month Warranty from the original date of consumer purchase:
- Bearings
- Swivel Seat Mechanism
- Front Riggins
- Batteries less than 31 ah supplied by Merits Health
- Bushings Products, Inc.
Warranty Exclusions: The following item(s) are excluded from warranty:
- Tires and tubes
- Upholstery including seating/arm pads/padding
- Plastic and rubber part(s)
- Painted surfaces including shrouds/fenders
- Fuses and bulbs
- Battery cases
- Motor brushes
- Brake pads
Warranty becomes invalid on any parts damaged from:
- Acts of nature
- lost, or stolen
- Commercial use
- Neglect, improper operation, and/or maintenance or repair
- Units altered or serviced by an agency not authorized
by Merits Health Products, Inc - Serial numbered products if the serial number has been removed or defaced
Warranty Service:
Merits Health Products, Inc. retains the right to replace warranted part(s) with either refurbished or new part(s) at their discretion. Any costs related to labor, service calls, transportation, freight, or other charges associated with the installation of warranted part(s) are the responsibility of the consumer/dealer.
This warranty gives you specific rights and you may also have other rights which may vary from state to state.
