PRODUCT DESCRIPTION
Description

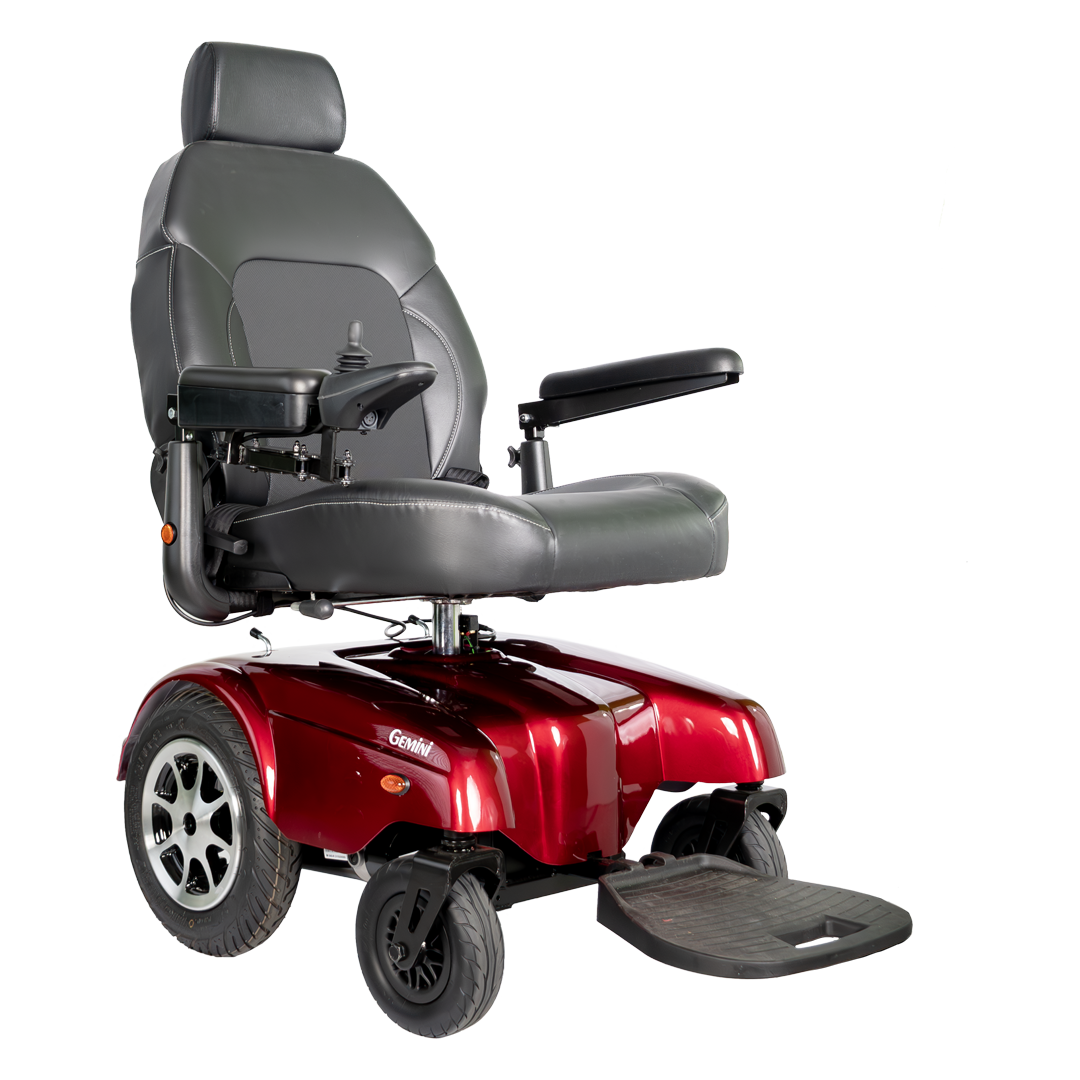

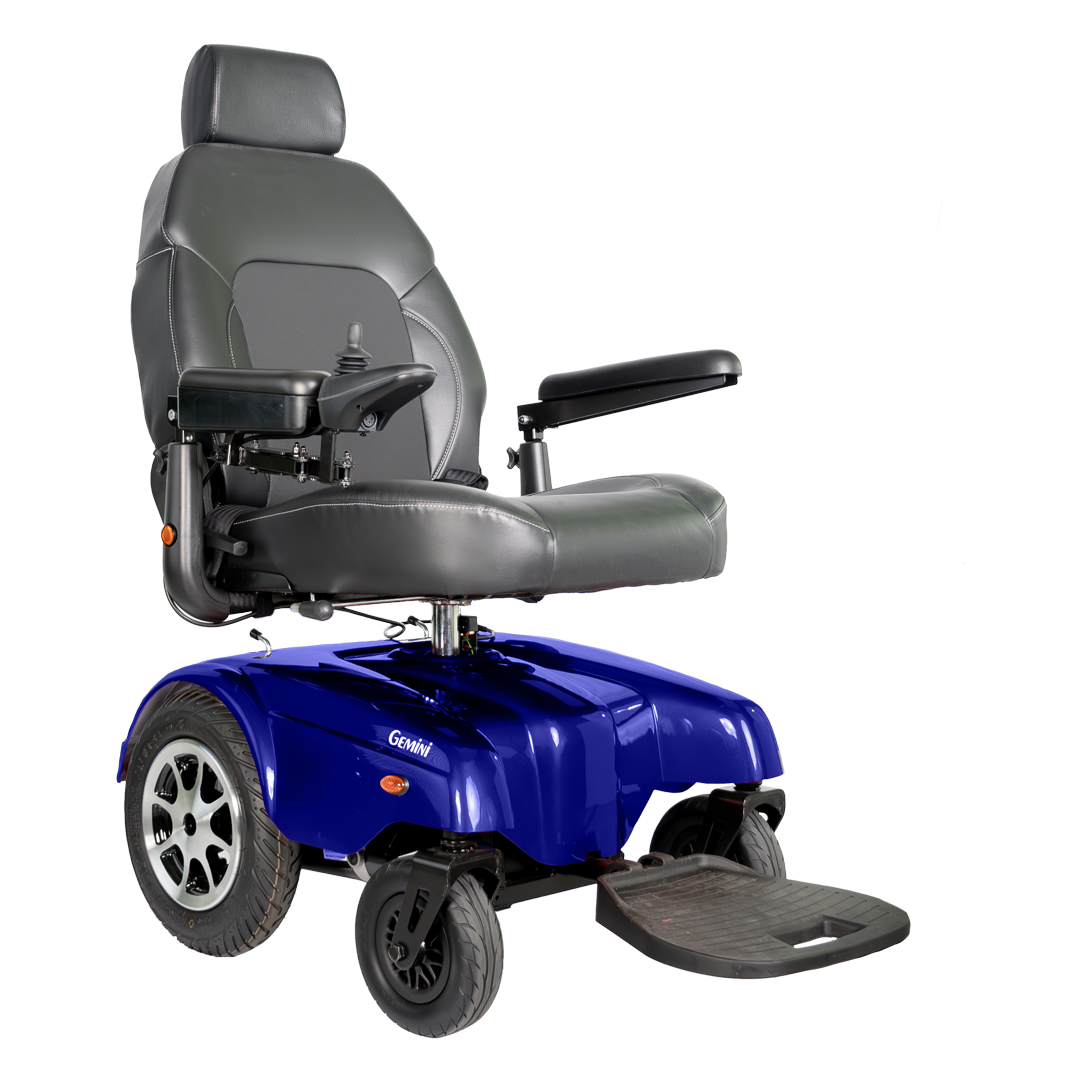

The Gemini heavy-duty power wheelchair seamlessly combines comfort with functionality. It’s one of the very few heavy-duty power wheelchairs to offer not only a heavy-duty (450 lbs) capacity but an optional power elevating seat, too! With highly adjustable features, a unique suspension system, and excellent maneuverability, this chair is ready to perform. So, whether you are using it at home or riding through town, the Gemini is a great choice.
Features
- 4” ground clearance for easy obstacle clearance
- 14” rubber drive tires for superior traction
- 20” or 22” ergonomic, semi-reclining seats: up to 135°
- Dynamic LiNX controller for easy programming and diagnostics
- Optional 5” power seat lift: reduces weight capacity to 350 lbs.
Specifications
| Product Number | P30111 w/lift, P301 |
| Weight Capacity | 450 lbs, 350 lbs |
| Drivetrain | RWD |
| Seat Type | Captain or Pan |
| Seat Width | P301: 22" P30111: 20” |
| Seat Depth | P301: 22” P30111: 20” |
| Backrest Height | 22" |
| Seat-to-Floor Height | P301: 22”- 24” P30111: 24” - 29” |
| Elevating Seat | P30111 - 5" |
| Overall Length | 41" |
| Overall Width | 24" |
| Overall Height | 45" |
| Turning Radius | 21" |
| Ground Clearance | 4" |
| Total Weight | 242 lbs, 350 lbs |
| Wt of Heaviest Pc | 126 lbs, 146 lbs |
| Max Speed | 5 mph |
| Per Charge Range | up to 20 miles |
| Motor | DC 24V, 240W |
| Controller | P&G VR2 60A |
| Battery Size (2) | 12V/22NF (50AH) |
| Charger | 5A off-board |
| Gradient | 10 ° |
| Front Wheels | 9" foam filled |
| Drive Wheels | 14" foam filled |
| Rear Wheels | 3"anti-tippers |
| Group | Group 2: Heavy Duty |
| HCPCS Code | K0824/K0825 |
| Standard Colors | Red or Blue |
Warranty
MERITS HEALTH PRODUCTS, INC. WARRANTY POLICY
Merits Health Products, Inc. will repair or replace the following item(s) that have a manufactured
defect. Credit will be given following inspection by an authorized representative of Merits Health
Products, Inc. into the material or workmanship.
Part(s) purchased outside of warranty have 30 days to report manufactured defect.
5-Year Warranty from the original date of consumer purchase:
- Frame
18-Month Warranty from the original date of consumer purchase:
- Joystick
- Charger
- Gearbox
- Transaxle
- Electrical Harness
- Motor Brake Assembly
13-Month Warranty from the original date of consumer purchase:
- Seat Post
- Caster Forks
- Power Seat Actuator
- Metal Seating Frame
- Caster Beam
- Anti Tipper Forks
- Armrest Bracket (metal part only)
- 31ah or above batteries
6-Month Warranty from the original date of consumer purchase:
- Bearings
- Swivel Seat Mechanism
- Front Riggins
- Batteries less than 31 ah supplied by Merits Health
- Bushings Products, Inc.
Warranty Exclusions: The following item(s) are excluded from warranty:
- Tires and tubes
- Upholstery including seating/arm pads/padding
- Plastic and rubber part(s)
- Painted surfaces including shrouds/fenders
- Fuses and bulbs
- Battery cases
- Motor brushes
- Brake pads
Warranty becomes invalid on any parts damaged from:
- Acts of nature
- lost, or stolen
- Commercial use
- Neglect, improper operation, and/or maintenance or repair
- Units altered or serviced by an agency not authorized
by Merits Health Products, Inc - Serial numbered products if the serial number has been removed or defaced
Warranty Service:
Merits Health Products, Inc. retains the right to replace warranted part(s) with either refurbished or new part(s) at their discretion. Any costs related to labor, service calls, transportation, freight, or other charges associated with the installation of warranted part(s) are the responsibility of the consumer/dealer.
This warranty gives you specific rights and you may also have other rights which may vary from state to state.
