Pionner 9
Merits
- Regular price
- Price: $3,539.00
- Regular price
- List Price: $3,932.22
- Sale price
- Price: $3,539.00
- Unit price
- / per
SKU:
Couldn't load pickup availability
Share
This Deal Ends In:
![](http://utopiacarebeds.com/cdn/shop/t/2/assets/ajax-loader.gif?v=41356863302472015721691269687)
Description

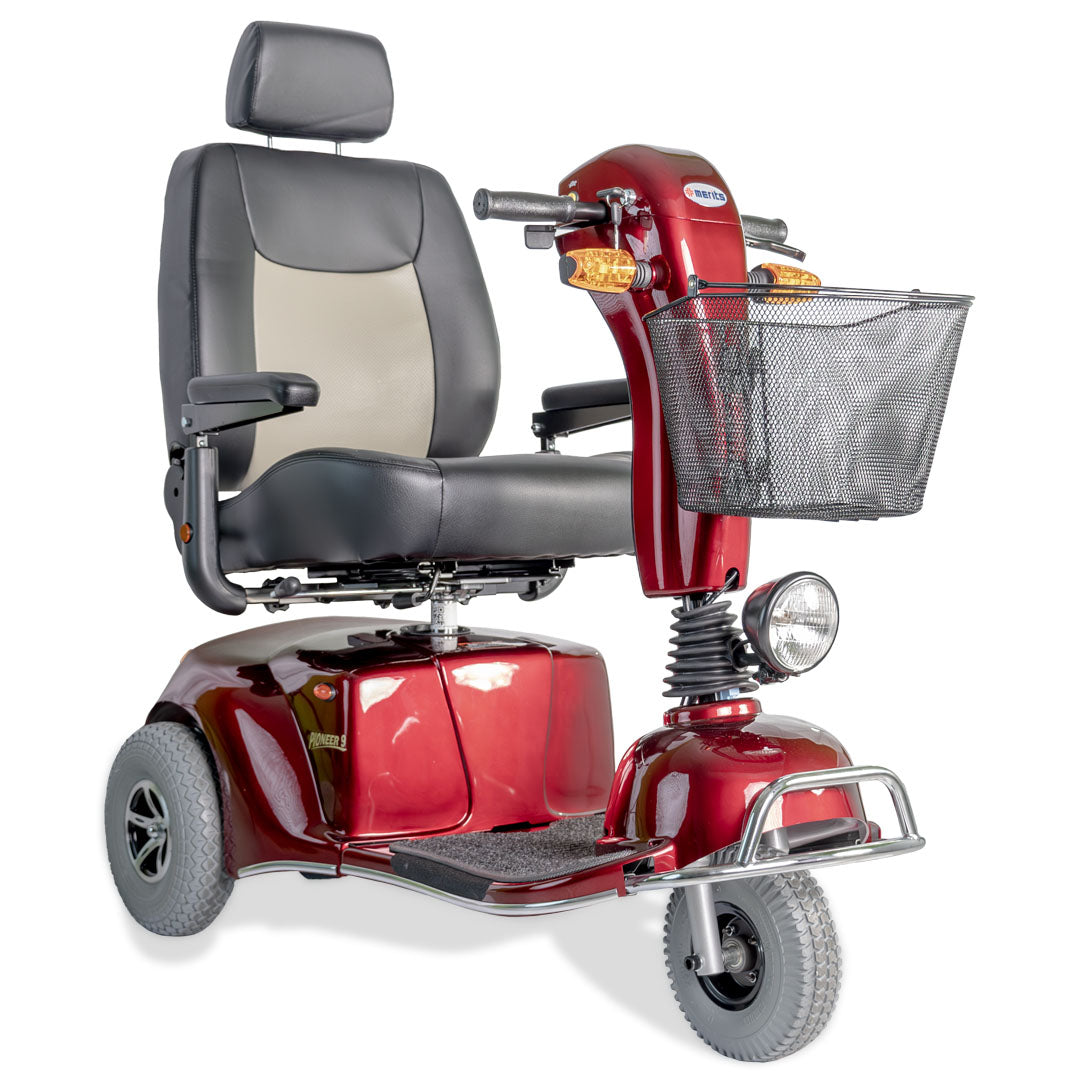

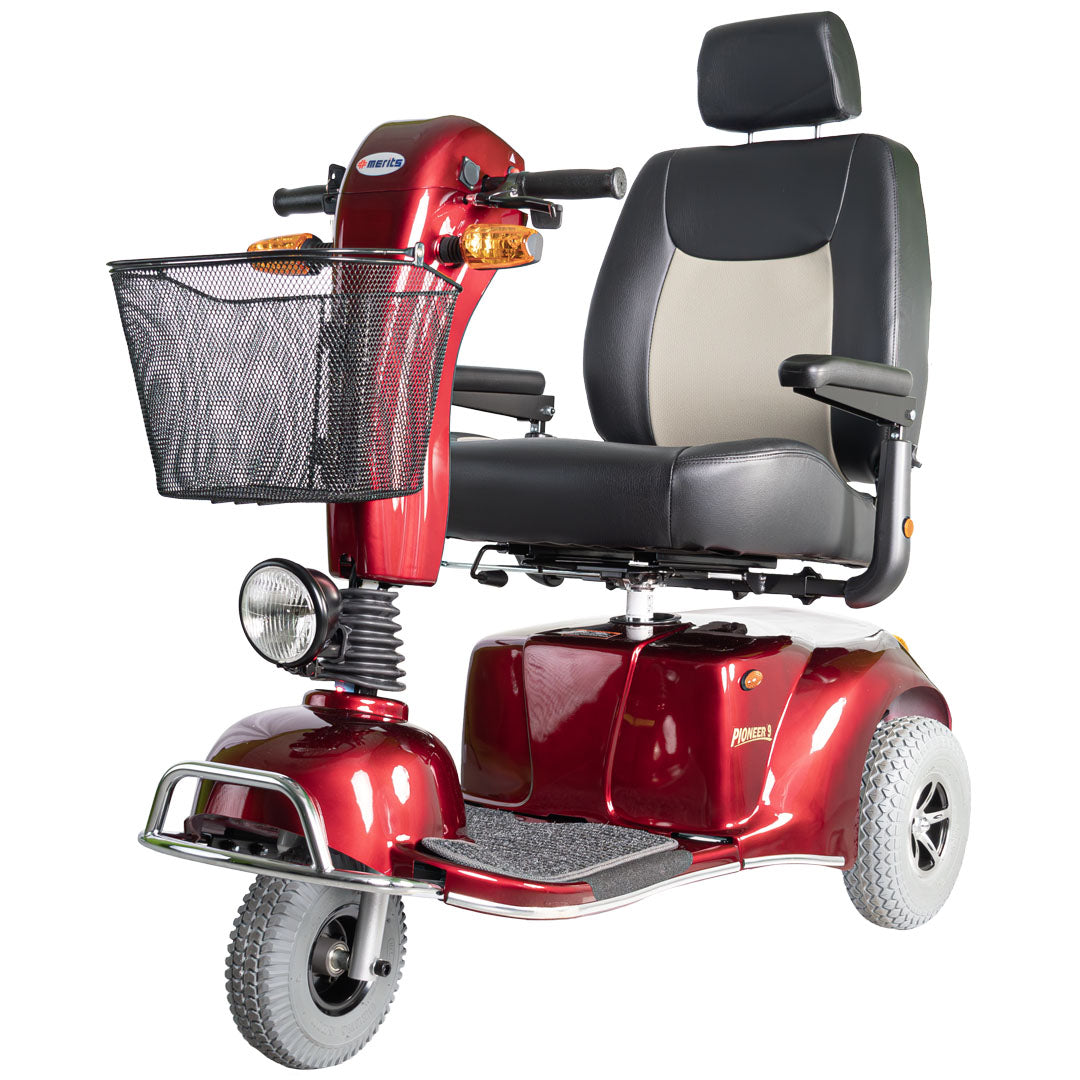

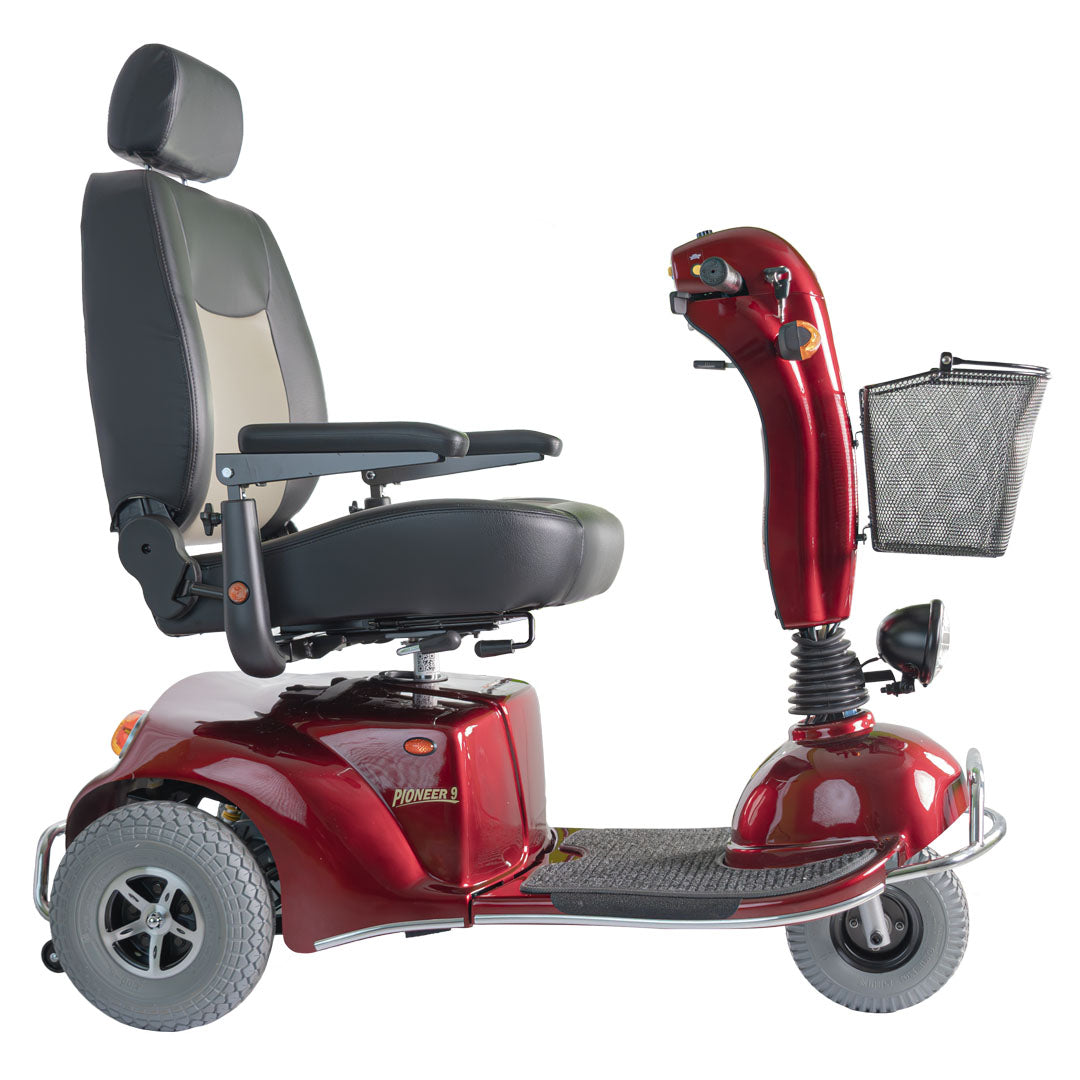

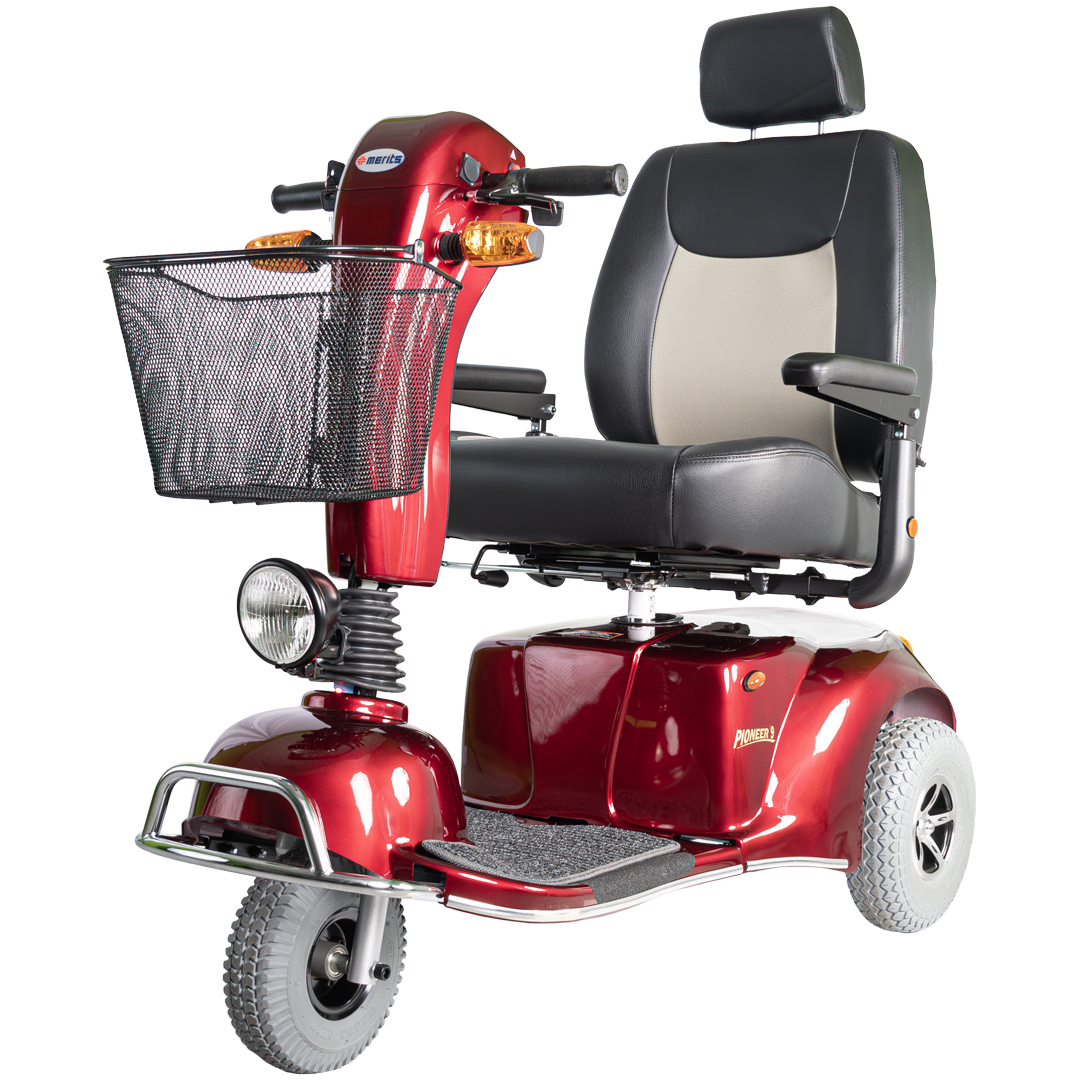

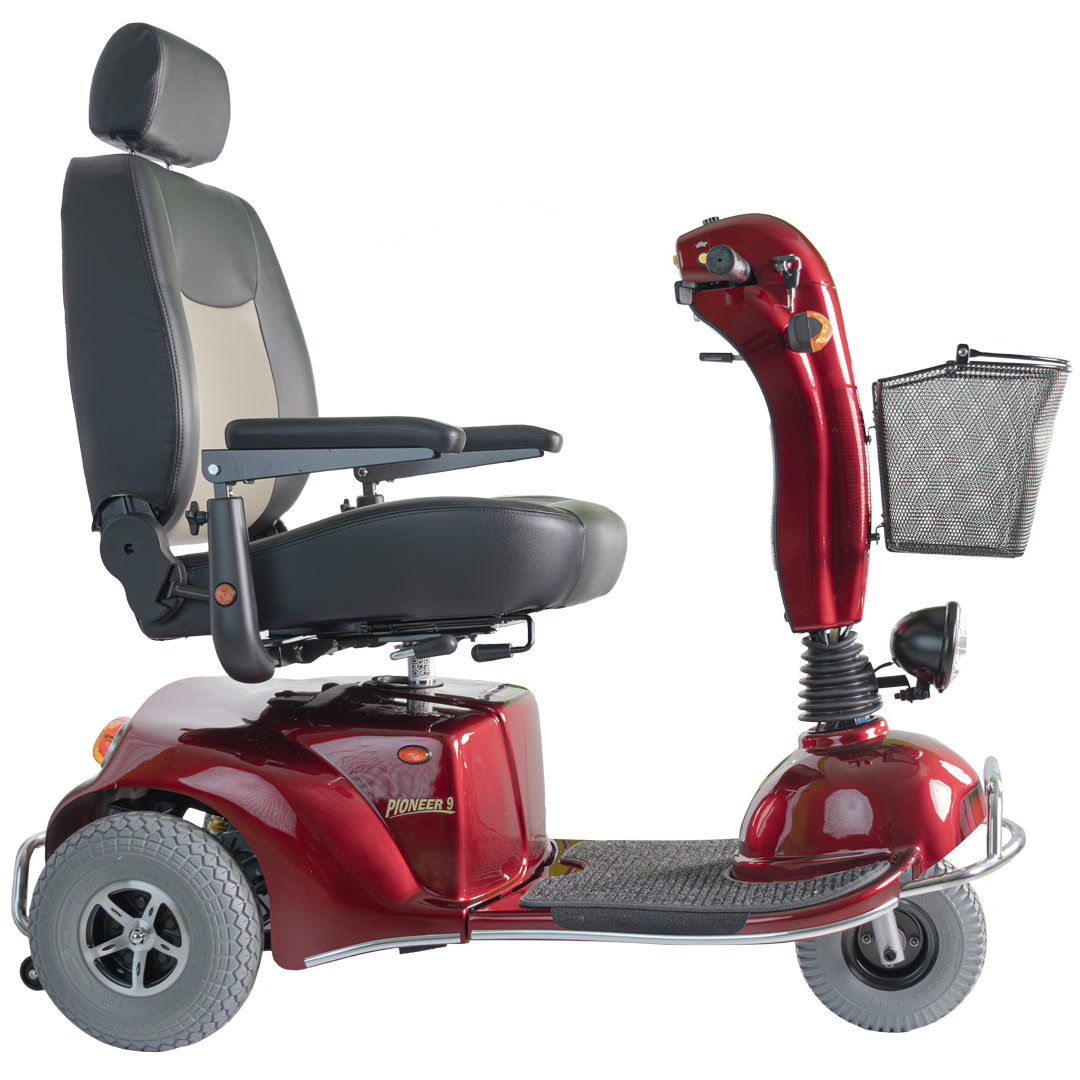

The Pioneer 9 is a 3-wheel heavy-duty scooter. It has a weight capacity of 500 lbs, a reinforced steel front bumper, large 10-in. flat free tires, and a strong suspension. Going 6 mph and lasting as long as 32 miles on a charge, the Pioneer 9 is an excellent choice.
Features
- Hydraulic, adjustable tiller
- 22”W x 20”D x 22”H, sliding, captain seat
- Half speed inhibit switch
- Headlight, tail lights, turn signals and hazard lights
- 4” ground clearance
- Three wheels provide a tighter turning radius for increased maneuverability
Specifications
Product Number | S331 |
Weight Capacity | 500 lbs |
Seat Width | 22" |
Seat Depth | 20" |
Backrest Height | 22" |
Seat-to-Ground Height | 25" - 28" |
Seat-to-Deck Height | 16" - 19" |
Overall Length | 54" |
Overall Width | 27" |
Overall Height | 47" |
Turning Radius | 50" |
Ground clearance | 4" |
Weight of Heaviest Piece | 101 lbs |
Total Weight | 249 lbs |
Max Speed | 6 mph |
Per Charge Range | up to 32 miles |
Motor | DC 24V, 400W |
Controller | Dynamic Rhino2 160A |
Battery Size (2) | 12V/Group 24 (70-80AH) |
Charger | 6A off-board |
Gradient | 12° |
Front Wheel(s) | 3-Wheel: 10" flat-free |
Rear Wheels | 12.5" flat-free |
Suspension | Yes |
HCPCS Code | K0808 |
Standard Colors | Red |
Warranty
MERITS HEALTH PRODUCTS, INC. WARRANTY POLICY
Merits Health Products, Inc. will repair or replace the following item(s) that have a manufactured
defect. Credit will be given following inspection by an authorized representative of Merits Health
Products, Inc. into the material or workmanship.
Part(s) purchased outside of warranty have 30 days to report manufactured defect.
5-Year Warranty from the original date of consumer purchase:
- Frame
18-Month Warranty from the original date of consumer purchase:
- Joystick
- Charger
- Gearbox
- Transaxle
- Electrical Harness
- Motor Brake Assembly
13-Month Warranty from the original date of consumer purchase:
- Seat Post
- Caster Forks
- Power Seat Actuator
- Metal Seating Frame
- Caster Beam
- Anti Tipper Forks
- Armrest Bracket (metal part only)
- 31ah or above batteries
6-Month Warranty from the original date of consumer purchase:
- Bearings
- Swivel Seat Mechanism
- Front Riggins
- Batteries less than 31 ah supplied by Merits Health
- Bushings Products, Inc.
Warranty Exclusions: The following item(s) are excluded from warranty:
- Tires and tubes
- Upholstery including seating/arm pads/padding
- Plastic and rubber part(s)
- Painted surfaces including shrouds/fenders
- Fuses and bulbs
- Battery cases
- Motor brushes
- Brake pads
Warranty becomes invalid on any parts damaged from:
- Acts of nature
- lost, or stolen
- Commercial use
- Neglect, improper operation, and/or maintenance or repair
- Units altered or serviced by an agency not authorized
by Merits Health Products, Inc - Serial numbered products if the serial number has been removed or defaced
Warranty Service:
Merits Health Products, Inc. retains the right to replace warranted part(s) with either refurbished or new part(s) at their discretion. Any costs related to labor, service calls, transportation, freight, or other charges associated with the installation of warranted part(s) are the responsibility of the consumer/dealer.
This warranty gives you specific rights and you may also have other rights which may vary from state to state.
![Pionner 9](http://utopiacarebeds.com/cdn/shop/files/Pioneer9otherside_1445x.jpg?v=1716678284)
![Pionner 9](http://utopiacarebeds.com/cdn/shop/files/Pioneer9profile_1445x.jpg?v=1716678254)
![Pionner 9](http://utopiacarebeds.com/cdn/shop/files/Pioneer9side_1445x.jpg?v=1716678273)
![Pionner 9](http://utopiacarebeds.com/cdn/shop/files/Pioneer9right_1445x.png?v=1716678273)
![Pionner 9](http://utopiacarebeds.com/cdn/shop/files/Pioneer9profileshadow_1445x.jpg?v=1716678285)
![Pionner 9](http://utopiacarebeds.com/cdn/shop/files/Pioneer9profileleft_1445x.png?v=1716678285)
![Pionner 9](http://utopiacarebeds.com/cdn/shop/files/Pioneer9front_1445x.jpg?v=1716678285)
